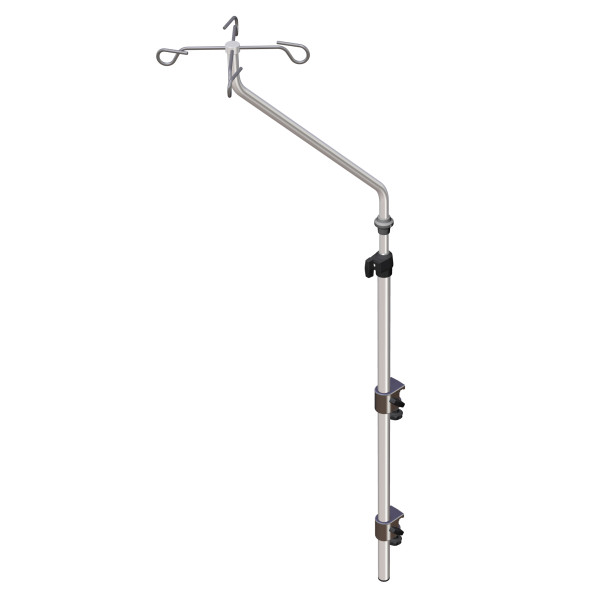

Infusion pole 4 hooks, bended

UA1950531
CE Marked Product

Infusion pole (IV-Pole)

Material of steel: 1.4301 (stainless steel); Type: bended (2 x 45°); Adjustment: 1-hand-safety height adjustment combined with screw adjustment (to prevent rotating); Sealing between tubes: included; color of plastic parts: black; Diameter of tubes: 25/18 mm;

Number of hooks: 4; Type of hooks (safety hooks - ISO 15375);

Range of height adjustment: 1,400 - 1,860 mm; including two clamps for standard rails 25x10 and 30x10 mm

Mounting type: Standard rail

Weight: 2,5 kg

Maximum load capacity: 2kg/hook max. 4kg

Compatible with
  • Ceiling Unit M20 w/VALiA X-V
  • Ceiling Unit M20 w/MediLift-H
  • Ceiling Unit M20 w/MediLift-V
  • Ceiling Unit M20 w/MediBoom-H
  • Ceiling Unit M20 w/MediBoom-V
  • Ceiling Unit M20 w/VALiA X-H
